1036 Standard Hinge
$290.00 USD
- Ball-Bearing hinges are made for doors with an opening frequency greater than 25 times per day.‚
- Disc-Bearing hinges are made for doors with an opening frequency of fewer than 25 times per day.
- Richards-Wilcox recommends that your selected hinge length is equal to 1/3 of your total door width.‚
- Richards-Wilcox recommends purchasing a matching backplate to go with your hinges to provide maximum stability.‚

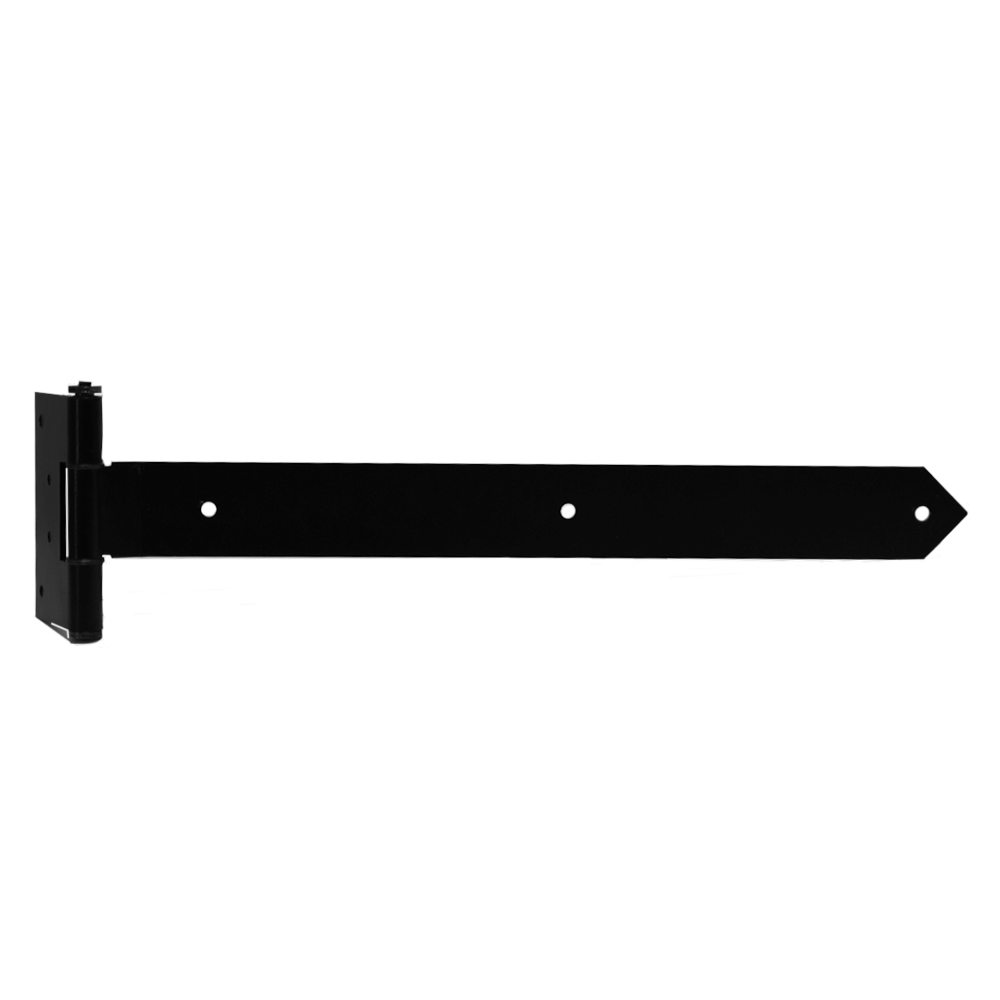

The 1036 standard strap half surface steel strap hinge with butt type pintle leaf for mounting to the inside of the frame. The 1036 standard hinge comes in disc and ball bearing variations, depending on the frequency of your door usage. It comes in 18", 24", and 36" lengths depending on the length of your door. The standard strap hinge is made of steel construction with a powder coat finish, while the pintle pin and bearings are zinc plated. The 1035 strap hinge comes with a pintle secured with a cotter pin. Fasteners not included.
Please consult the table below to determine the number of hinges needed for ordering. Important Note: The specified door weight and hinge moment must be less than or equal to the published values in the chart for the model of hinge used.
To calculate moment (ft#) the equation is width of door (ft) x weight of door (lb).
For example, a door width of 4.5' and 500lb = 2,250ft#. At 8' high, it requires 3 hinges and only can use the 36" disc or ball bearings for operation:
| 19" Disc Bearing | 24" Disc Bearing | 36" Disc Bearing | 19" Ball Bearing | 24" Ball Bearing | 36" Ball Bearing | ||||
| # Hinges Required | Max Door Height (ft) | Max Weight (lb) + Moment (ft#) | Max Weight (lb) + Moment (ft#) | Max Weight (lb) + Moment (ft#) | Max Weight (lb) + Moment (ft#) | Max Weight (lb) + Moment (ft#) | Max Weight (lb) + Moment (ft#) | ||
| 2 | 4 | 1104lb 842ft# | 1104lb 842ft# | 1104lb 1796t# | 1104lb 842ft# | 1104lb 842ft# | 1104lb 1759t# | ||
| 3 | 8 | 1657lb 1965ft# | 1657lb 1965ft# | 1657lb 4192ft# | 1657lb 1965ft# | 1657lb 1965ft# | 1657lb 4104ft# | ||
| 4 | 12 | 2209lb 3088ft# | 2209lb 3088ft# | 2209lb 6587ft# | 2209lb 3088ft# | 2209lb 3088ft# | 2209lb 6450ft# | ||
| 5 | 16 | 2761lb 4210ft# | 2761lb 4210ft# | 2761lb 8795ft# | 2761lb 4210ft# | 2761lb 4210ft# | 2761lb 8795ft# | ||
| 6 | 20 | 3313lb 5333ft# | 3313lb 5333ft# | 3313lb 11140ft# | 3313lb 5333ft# | 3313lb 5333ft# | 3313lb 11140ft# | ||
| 7 | 24 | 3866lb 6456ft# | 3866lb 6456ft# | 3866lb 13485ft# | 3866lb 6456ft# | 3866lb 6456ft# | 3866lb 13485ft# |
