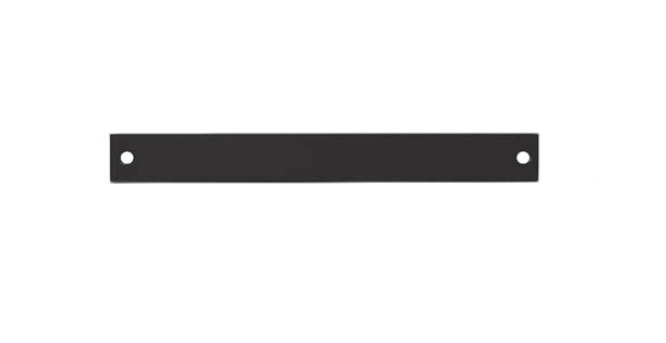

105 Flat Track
$144.00 USD

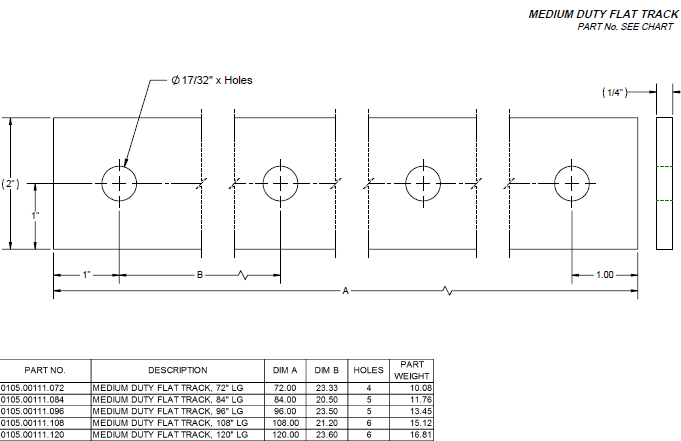

The 105 Flat Track uses the 400lb and 250lb series of flat track hangers. Max weight per section of track is 400lb and allows doors up to 1-3/4" thick. Flat track uses wall spacers (sold separately) to space out from the header, see chart below:
| Track Length (ft) | No. of holes/Spacers required |
| 4' | 3 |
| 5' | 4 |
| 6' | 4 |
| 7' | 5 |
| 8' | 5 |
| 9' | 6 |
| 10' | 6 |
Track is made of 1/4" thick mild steel and powder coated only in black.
This product will ship in approximately 2-4 weeks.
