330 Series Track Truck With Aprons
  • 330 Series Track Truck With Aprons
  • Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons
  • Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons
  • Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons
  • 330 Series Track Truck With Aprons
  • Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons
  • Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons
  • Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons
Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons

Series 330/376 Caged Bearing Box Track Truck (Pairs) with Aprons

$455.00 USD
  • Door Thickness: 1 3/4" to 2 1/4" and 2 1/4" to 3"‚
  • Capacity: 800 lbs. per door
  • Truck hangers sold in pairs

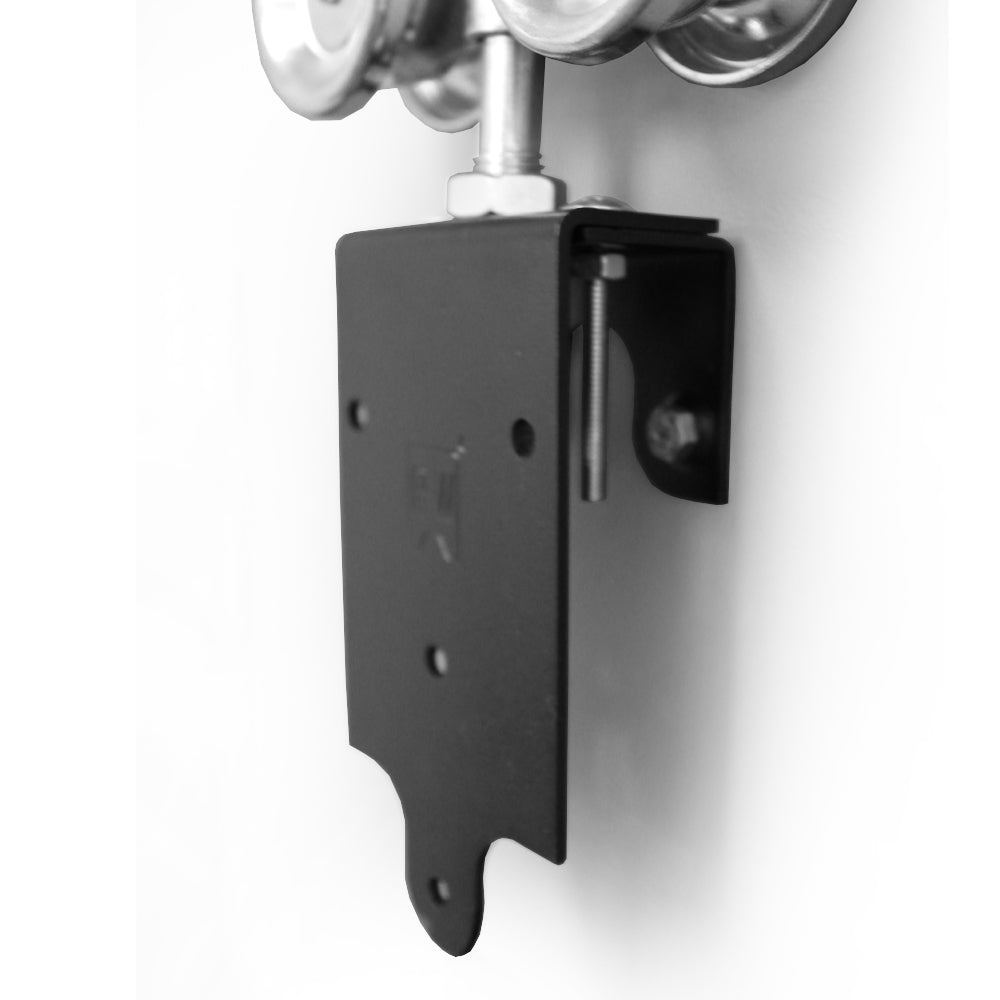

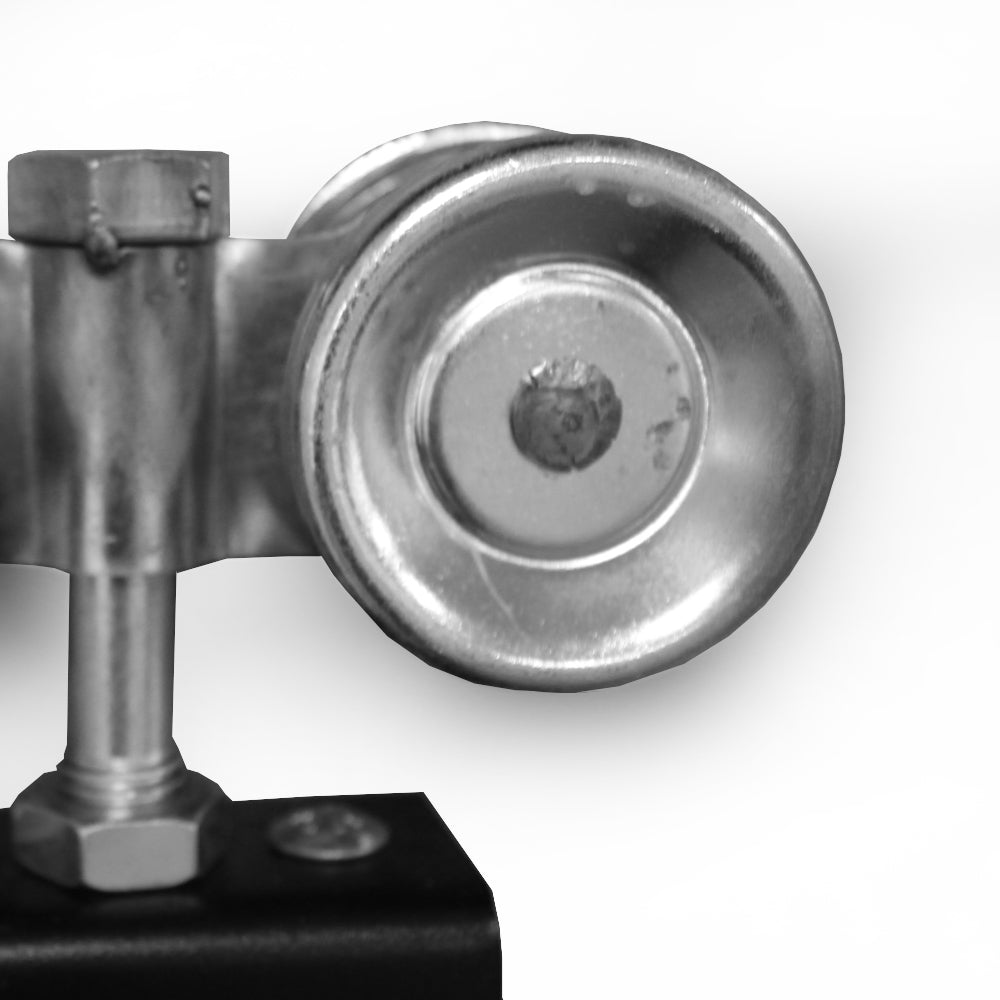

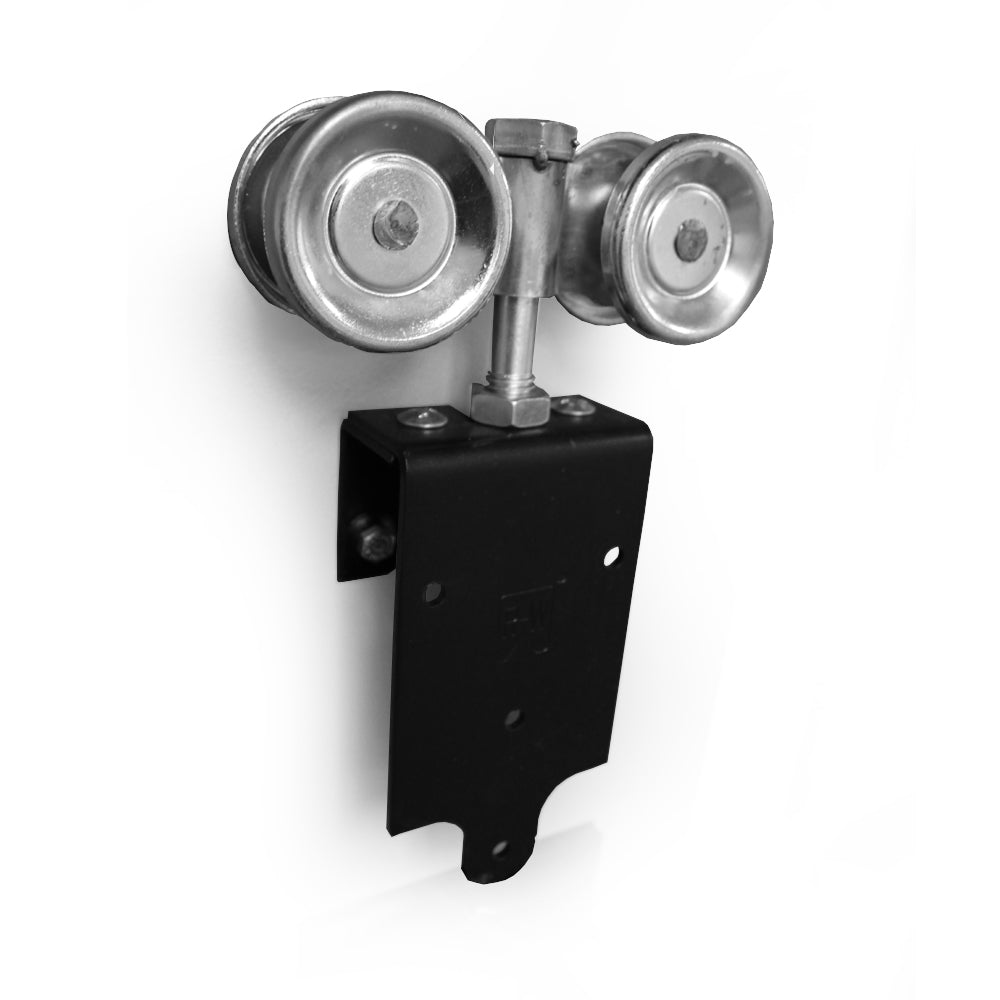

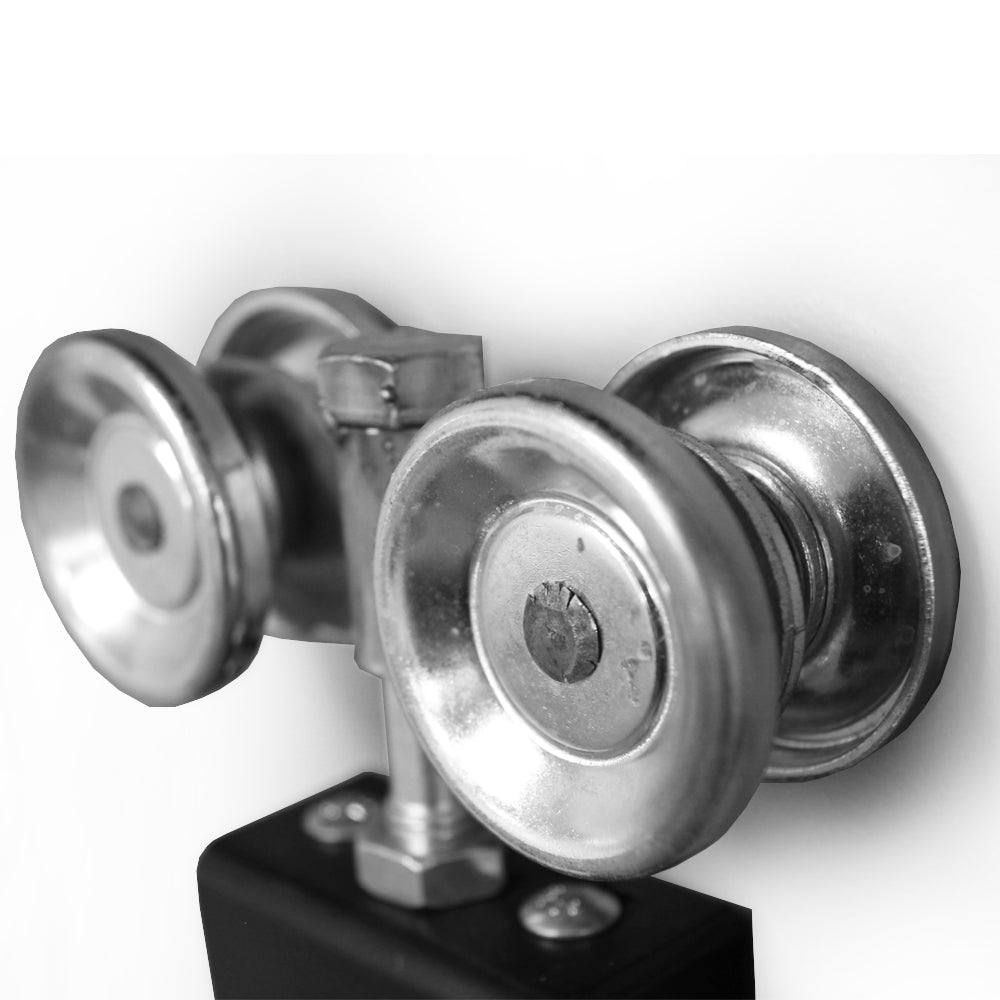

The 330 truck is for manually operated sliding doors, weighing up to 800 lbs. Head clearance is the distance from the top of the door to the bottom of the track. Head clearance for the 330 truck is a minimum of 1-1/8" and a maximum of 2-3/4". The bottom of the track to the centerline of the hole in the sidewall bracket is 5-1/4". The construction of the 330 truck assembly is made of zinc-plated steel. Wheels are 3" in diameter. Lateral and vertical adjustment is available. Aprons are 9/64" thick x 4" wide x 7-1/2" long.
Truck Wheel Material Selector
Apron Selection
